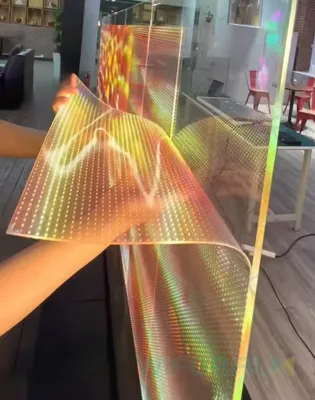

Our LED Film Screen series represents a groundbreaking display technology that requires no structure, no programming, and no adhesive tape. With a transparency of 85%-95%, it can be effortlessly applied to commercial windows glass or transparent acrylic panel without the need for an additional professional team.
Available in various pixel pitches such as 3.91mm, 5mm, 6mm, 6.25mm, 8mm, 10mm, 15mm, and 20mm, this LED Film Screen offers different brightness options to suit various installation locations. (The larger the pixel pitch, the lower the resolution and the higher the transparency.)
Our LED Film Screen can be seamlessly spliced together to cover larger areas, and the panels can be custom-cut to the required dimensions based on your needs.
Installation is simple: just use a squeegee to easily apply the LED screen to the commercial windows glass or acrylic panel. Additionally, we provide remote support from our technical team for assistance.
Key Features:
Flexible Crystal Film |
Material - PET and transparent adhesive film |
Panel size - 400mm (w)*1000mm(h)(Can be customized upon request) |
Pitch options - 5mm, 6mm, 6.25mm, 8mm, 10mm, 15mm, 20mm |
Brightness - 2000-4000nits |
Transparency - 85-95% |
|
Holographic Film |
Material - Grid-shaped black holographic screen |
Panel size - 250mm (w)*1000mm(h)(Can be customized) |
Pitch options - 3.91mm, 6.25mm |
Brightness - 800-6000nits |
Transparency - 70-90% |
Item | Adhesive Transparent LED Film Screen | Structure Transparent LED Display | Conventional LED Screen |
Weight | ≤3.5 kg/m² | ≤10 kg/m² | ≤35 kg/m² |
Screen Thickness | ≤3 mm | ≤10 mm | around 100mm incl power box |
Powerbox Thickness | 60 mm | 80mm | around 100mm incl power box |
Transparency Rate | 85% ~ 95% | 60% ~ 90% | 0 |
Installation Way | Adhesive to glass or transparent acrylic panel (No need frame) | Fixed / Hanging | Fixed |
External Structure | Not needed | Simple frame | Heavy frame |
Flexible | Bendable | Customized for a certain angle | Customized for a certain angle |
PCB | Invisible (Thin film circuit) | Traditional PCB | Traditional PCB |
Drive Mode | Static drive | Dynamic scanning | Dynamic scanning/Static |
Heat Dissipation | Natural cooling | Natural cooling | Fan |
Impact on the original structure | No impact | Medium impact | Big impact |
Maintenance way | Tear off film from glass | Take off panel | Take off module |
Pixel pitch | P5,P6, P8, P10, P15, P20 |
|
|
Resistance to fall, crack, collision and dusk | Yes | No (Yes if with GOB) | No (Yes if with GOB) |
Waterproof | IP65 for film surface | IP30 / IP65 for some models | IP30 / IP65 |
MODEL | P6.25 | P8 | P10 | P15 | P20 |
Module size (mm) | 1000*400 | 1000*400 | 1000*400 | 1000*400 | 1000*400 |
LED light | REE1515 | REE1515 | REE1515 | REE2121 | REE2121 |
Pixel composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
Pixel spacing (mm) | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 |
Module pixel | 160*64=10240 | 125*50=6250 | 100*40=4000 | 66*26=1716 | 50*20=1000 |
Pixel/m2 | 25600 | 16500 | 10000 | 4356 | 2500 |
Brightness | 2000-3000 cd/m² | 2000-3000 cd/m² | 2000-4000 cd/m² | 2000-4000 cd/m² | 2000-4000 cd/m² |
Permeability | 90% | 92% | 94% | 94% | 95% |
Angle of view ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
Input voltage | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz |
Peak power | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ |
Average power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ |
Work environment |
Temperature -20~55°C Humidity 10-90% |
Temperature -20~55°C Humidity 10-90% |
Temperature -20~55°C Humidity 10-90% |
Temperature -20~55°C Humidity 10-90% |
Temperature -20~55°C Humidity 10-90% |
Weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
Drive mode | Static state | Static state | Static state | Static state | Static state |

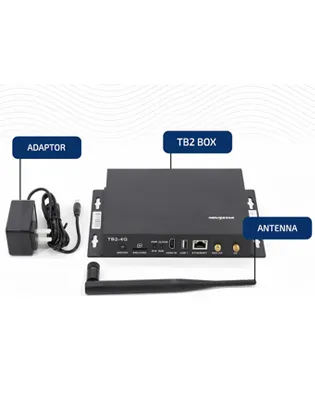

Control system | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight |
Typical value of life | 100000H | 100000H | 100000H | 100000H | 100000H |
Grayscale level | 16bit | 16bit | 16bit | 16bit | 16bit |
Refresh rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
PIXEL PITCH | P3.91-P3.91 | P3.91-P3.91 | P6.25-6.25 | P6.25-6.25 |
---|---|---|---|---|
Screen Size (w*h) | 250x1000mm | 250x1200mm | 250x1200mm | 250x1500mm |
Brightness | 4000nits | 4000nits | 5000nits | 5000nits |
IP Rate | IP30 | IP30 | IP30 | IP30 |
Panel Weight | ≤ 6KG/m2 | ≤ 6KG/m2 | ≤ 5KG/m2 | ≤ 5KG/m2 |
Max Power Consumption | 800 W/㎡ | 800 W/㎡ | 800 W/㎡ | 800 W/㎡ |
