Adhesive LED Transparent Film Screen

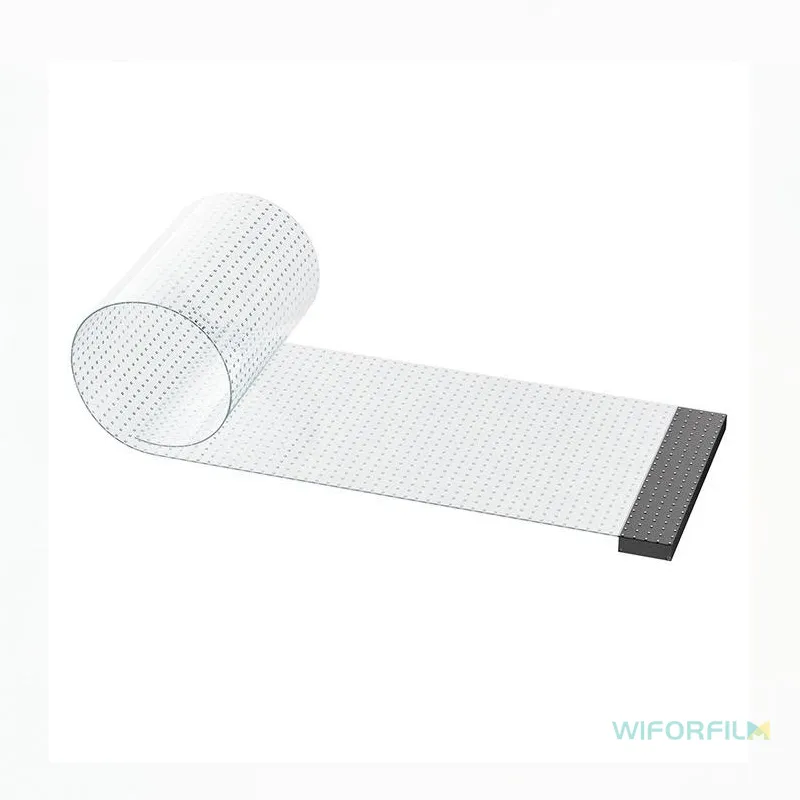

P20 LED Crystal Film Screen

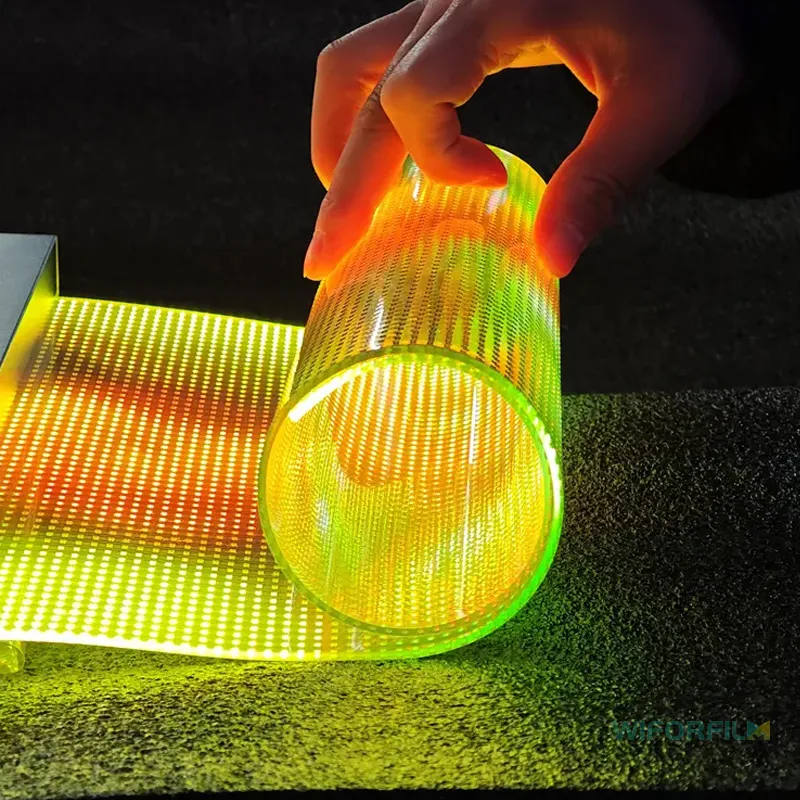

The LED Crystal Film Screen offers 95% transparency, ensuring it doesn't affect glass curtain wall lighting or display effects. With a thin and light design, it exerts no load-bearing pressure on glass, while its 3840Hz refresh rate and 160° viewing angle enhance smoothness and visibility.100,000-hour lifespan. It supports arbitrary bending and cutting for versatile installations, making it ideal for scenarios like car shows, escalators, and indoor partitions.
| Module size (mm) | 1000*400 | Peak power | 600w/㎡ |
| LED light | REE2022 | Average power | 200w/㎡ |
| Pixel composition | R1G1B1 | Work environment |
Temperature -20-55 Humidity10-90% |
| Pixel spacing (mm) | 20*20 | Weight | 1.3kg |

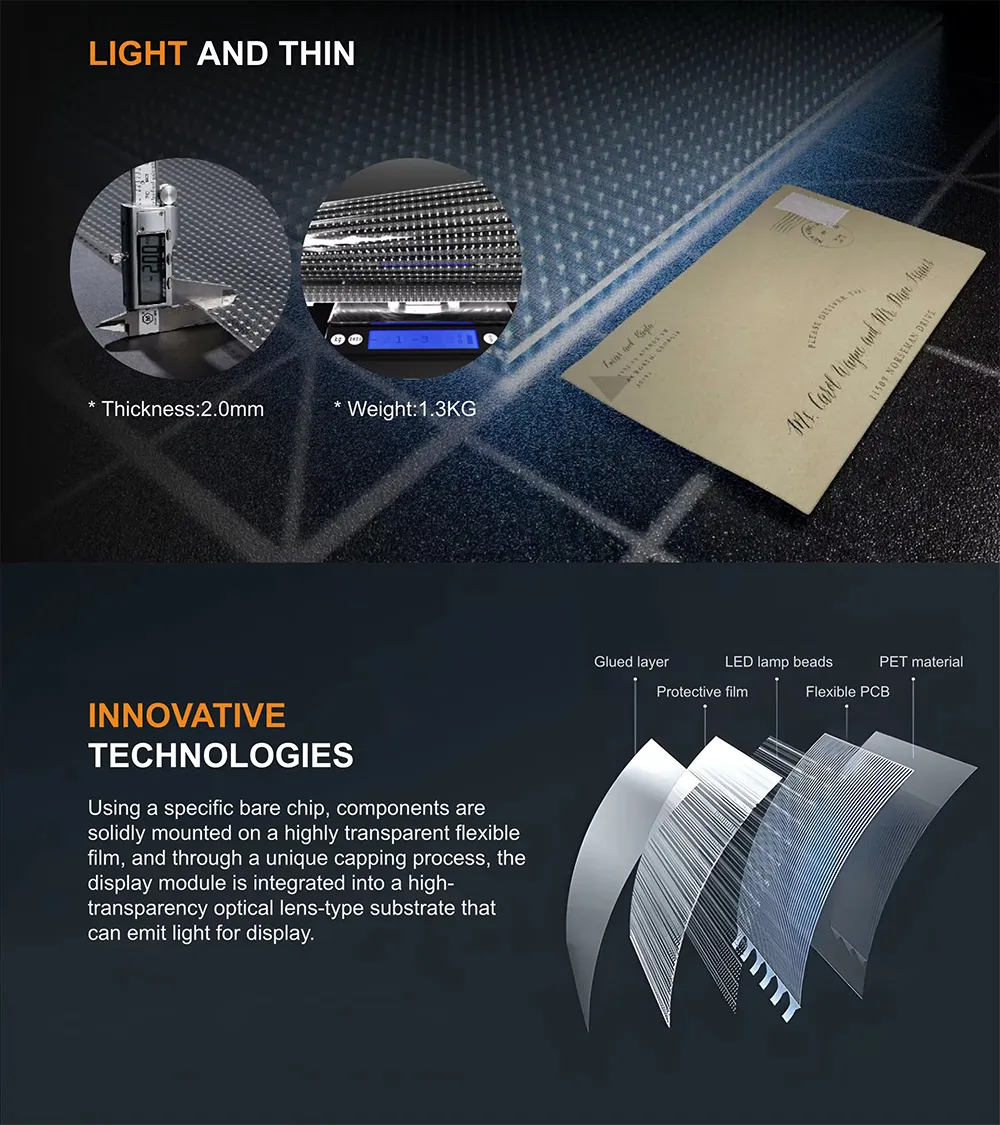

| Module pixel | 50*20=1000 | Thickness | 2.5mm |
| Pixel/㎡ | 2500 | Drive mode | static state |
| Brightness | 2000/4000 | Control system | Nova/Colorlight |
| Permeability | 95% | Typical value of life | 100000H |
| Angle of view ° | 160 | Grayscale level | 16bit |
| input voltage | AC110-240V50/60Hz | Refresh rate | 3840Hz |
| Recommended Viewing Distance | 10–20 meters | ||
FAQs
-
1. What does “P20” mean in the LED Crystal Film Screen?“P20” refers to the pixel pitch of 20mm, meaning each LED pixel is spaced 20mm apart. This affects the screen’s resolution and ideal viewing distance.
-
2. How transparent is the LED Film Screen?It offers up to 95% transparency, maintaining the original look and brightness of the glass while displaying digital content.
-

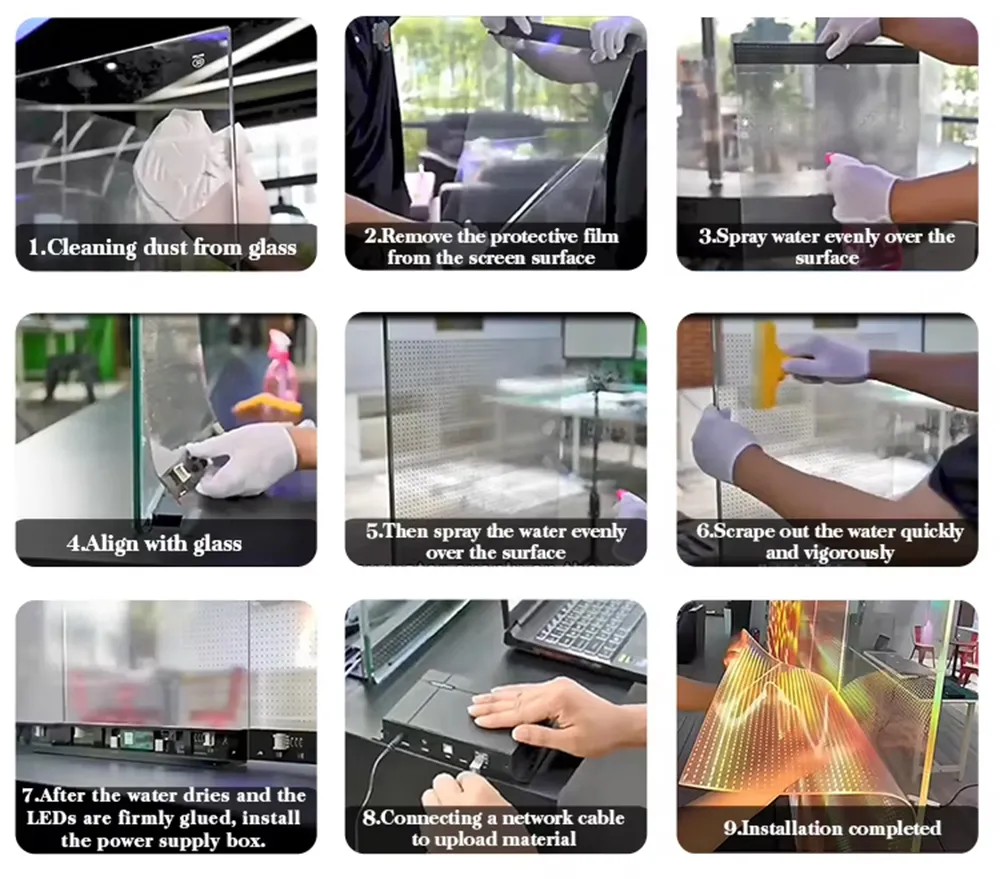

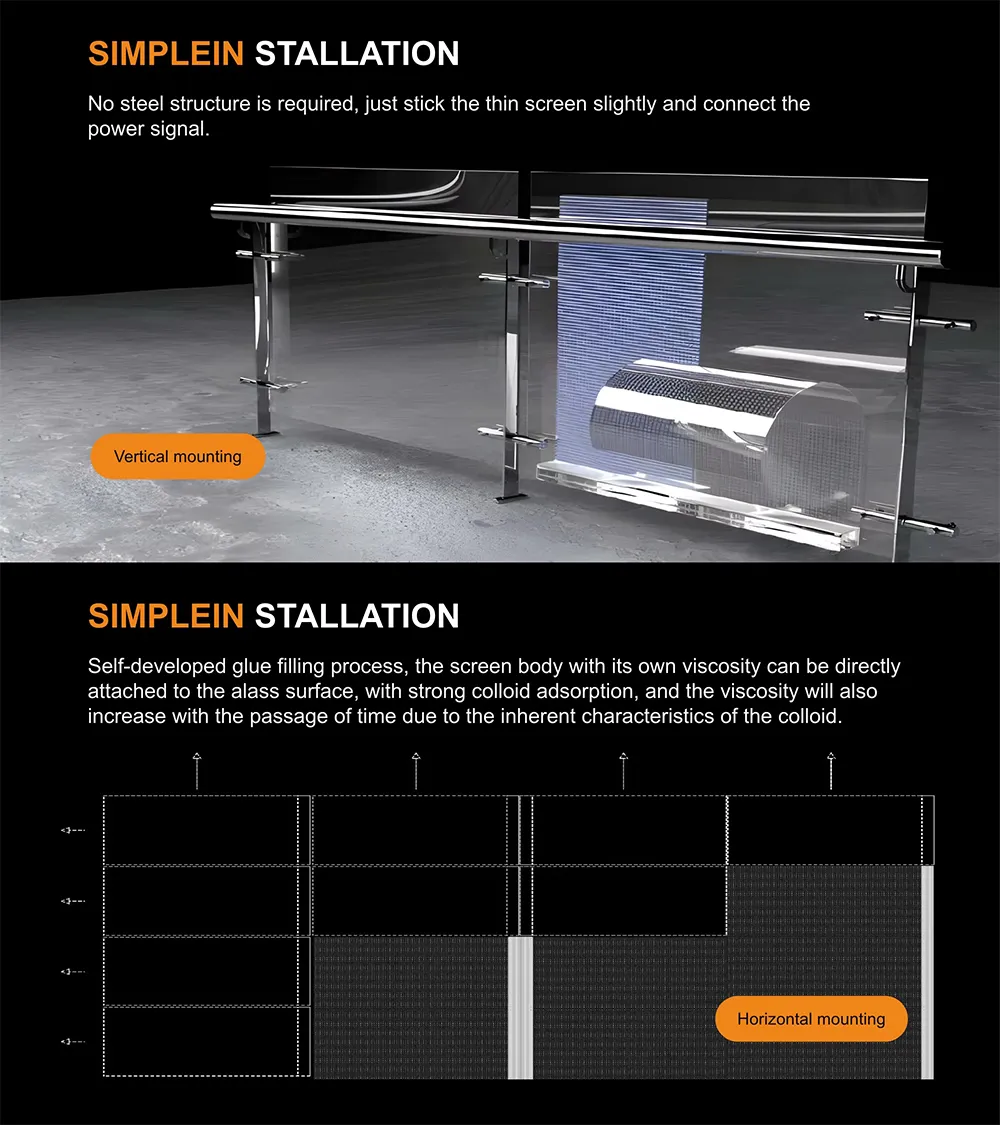

3. Can it be installed on any type of glass?Yes, the LED film can be applied to flat or slightly curved glass surfaces, such as tempered, laminated, or acrylic glass.
-
4. Is it suitable for outdoor use?The LED Crystal Film Screen is mainly designed for indoor or semi-outdoor environments. For full outdoor use, a customized waterproof version is available.
-
5. Can I customize the size or shape of the screen?Yes. The P20 film can be cut, combined, or customized to fit any glass dimension or design layout.
-
6. What’s the viewing distance for P20 LED film?Optimal viewing distance is 10–20 meters, making it ideal for medium- to large-scale displays.
-

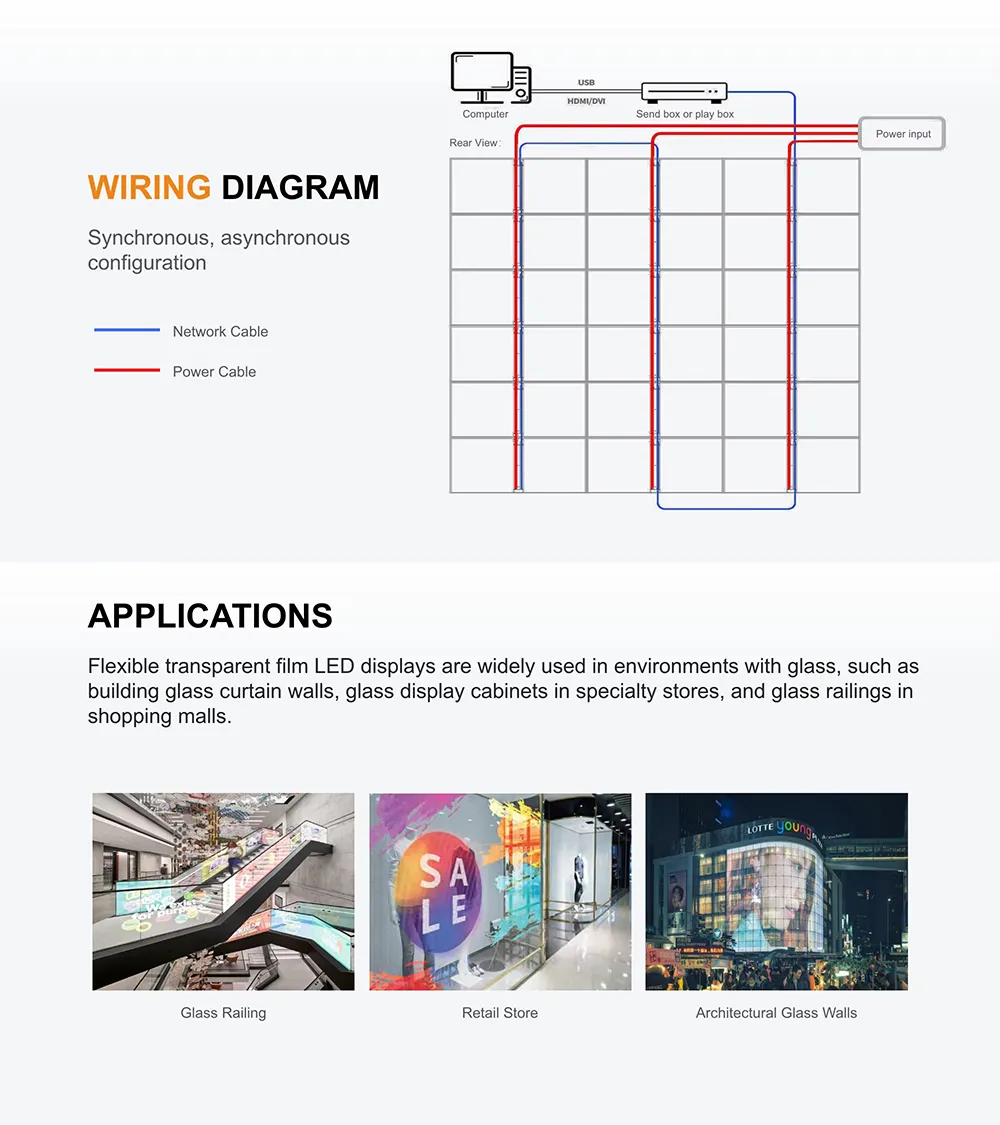

7. How is the screen controlled or updated?It supports USB, Wi-Fi, 4G, or LAN control, allowing remote content updates via computer or cloud system.
-
8. Does it affect the glass’s transparency when turned off?No. When the display is off, it appears nearly invisible — keeping the glass fully transparent.
-

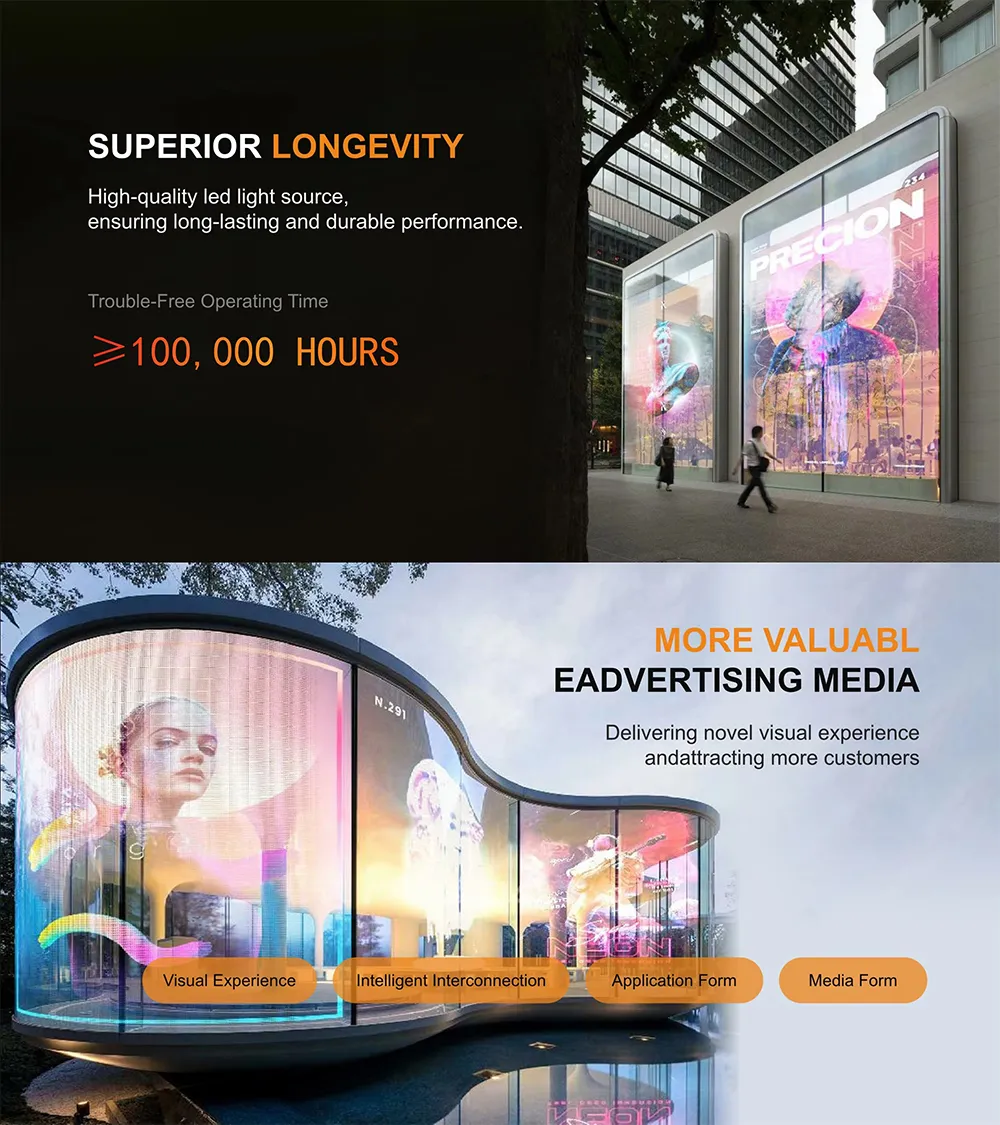

9. What’s the lifespan of the LED screen?The lifespan exceeds 100,000 hours (over 10 years of operation).
