P10 Ultra Transparent Film LED Screen

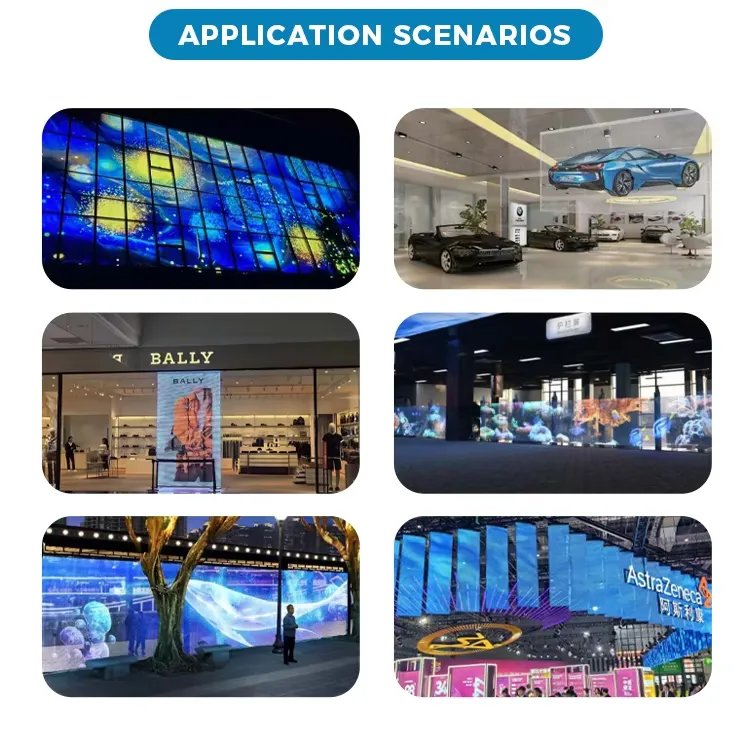

This P10 ultra transparent film LED screen features a pixel pitch of 10mm, high transparency (>94%), and a lightweight design (≤2.6kg/㎡), making it ideal for retail stores, shopping malls, and exhibition halls. With a refresh rate of ≥3840Hz, a wide viewing angle (Horizontal ≥160°, Vertical ≥140°), and an average lifespan of ≥100,000 operating hours, it ensures vibrant visuals and long-term reliability. The ultra transparent LED screen equipped with CE, RoHS, and FCC certifications, it complies with EU safety and environmental standards.
Advantages
- High Transparency – Up to 94% transparency keeps the glass clear and bright.

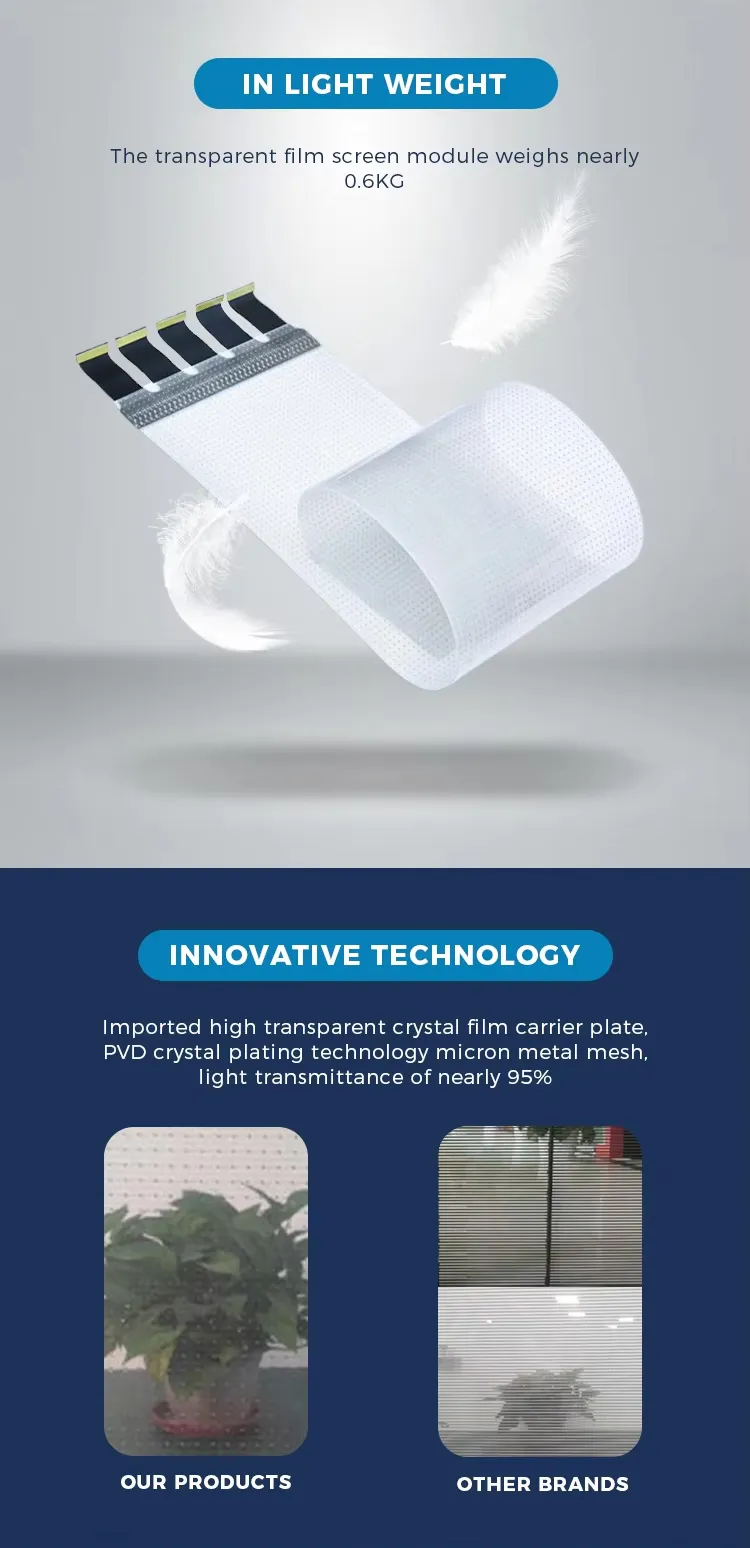

- Ultra-Thin & Lightweight – Only 2.5mm thick and 2.6kg/m², easy to install on any glass.

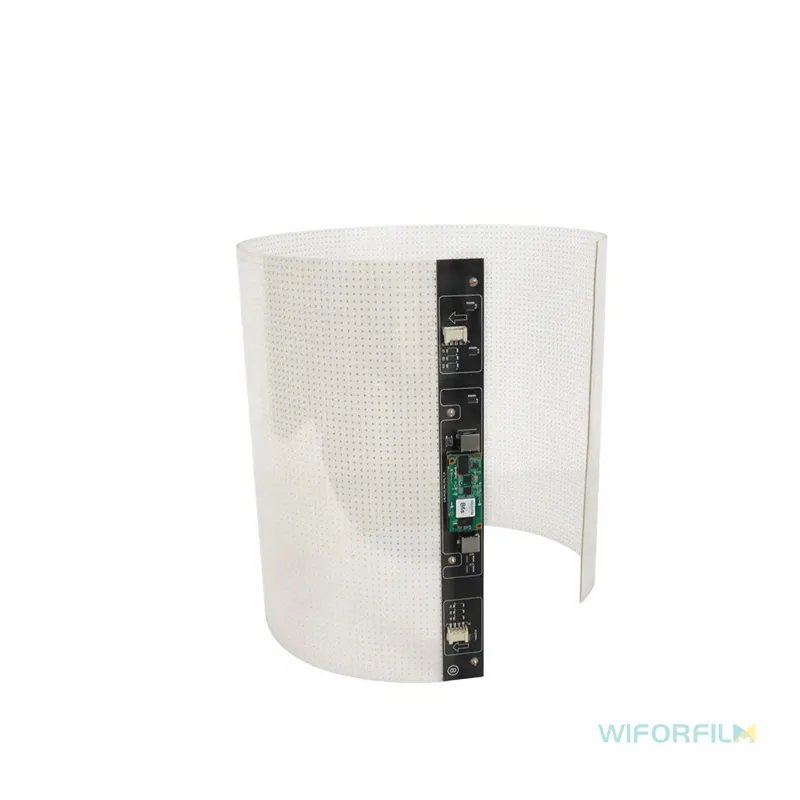

- Flexible Design – Can be used on flat, curved, or irregular glass surfaces.
- High Brightness – 2000–4000 nits ensures visibility even in sunlight.

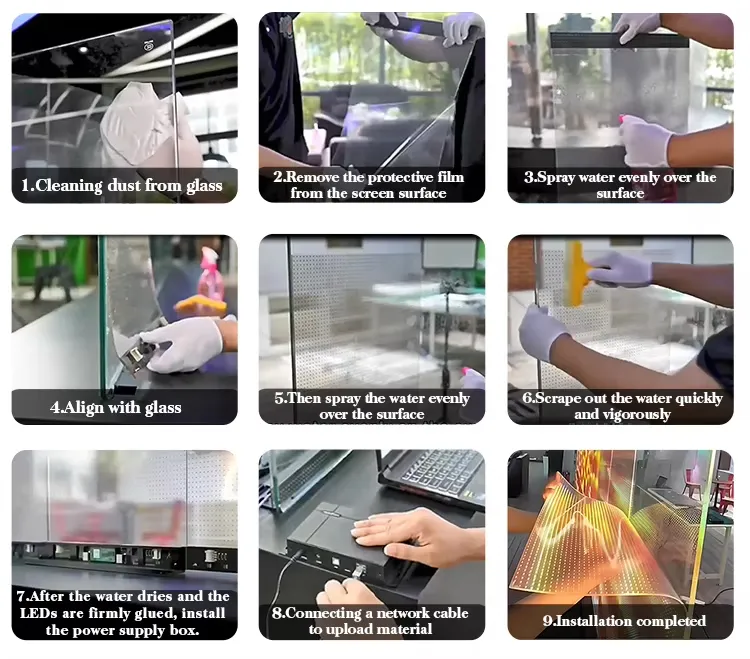

- Easy Installation – Self-adhesive film, no heavy frame or structure needed.
- Energy Saving – Low power consumption with high performance.
- Smart Control – Supports Wi-Fi, 4G, USB, and cloud for remote content updates.
- Long Lifespan – Over 100,000 hours of stable operation.
- Low Maintenance – Dustproof and easy to clean.
- Customizable Size – Modular design fits any glass area or project.
| Module size (mm) | 1000*400 | Peak power | 600w/㎡ |
| LED light | REE1515 | Average power | 200w/㎡ |
| Pixel composition | R1G1B1 | Work environment |
Temperature -20-55 Humidity10-90% |
| Pixel spacing (mm) | 10*10 | Weight | 1.3kg |
| Module pixel | 100*40=4000 | Thickness | 2.5mm |
| Pixel/㎡ | 10000 | Drive mode | static state |
| Brightness | 2000/4000 | Control system | Nova/Colorlight |
| Permeability | 94% | Typical value of life | 100000H |
| Angle of view° | 160 | Grayscale level | 16bit |
| input voltage | AC110-240V50/60Hz | Refresh rate | 3840Hz |
| Recommended Viewing Distance | 5–10 meters | ||
FAQs
-
What does “P10” mean in the P10 Ultra Transparent Film LED Screen?“P10” refers to the pixel pitch of 10mm, which is the distance between LED pixels. A smaller pitch means higher resolution.
-
How transparent is the P10 LED screen?It offers up to 94% transparency, allowing light to pass through and keeping the glass surface nearly unchanged.
-
Can it be installed on any glass surface?Yes, it’s designed for smooth glass surfaces and uses a self-adhesive layer for easy installation.
-
Is it suitable for outdoor use?The Ultra Transparent LED Film Screen is waterproof and UV-resistant, making it suitable for indoor and semi-outdoor applications.
-
How is the screen controlled?It supports both synchronous (real-time display) and asynchronous (pre-loaded content) control systems, via Wi-Fi, USB, or LAN.
-
What types of content can be displayed?You can display videos, images, animations, and text, supporting multiple file formats like MP4, JPG, PNG, etc.
-
Can the film be customized to fit irregular glass shapes?Yes, the Ultra Transparent LED Screen is flexible and cuttable, allowing custom shapes and sizes according to the project’s requirements.
-
How bright is the P10 film screen?With brightness levels of 4000 nits or higher, it ensures clear visibility even under direct sunlight.
-
What is the lifespan of the P10 LED film?The typical lifespan is over 100,000 hours, offering long-term reliable performance.
-
Does it affect indoor lighting or the building’s view?No, the high transparency ensures that natural light passes through, and the view from inside remains unobstructed.
