Adhesive LED Transparent Film Screen

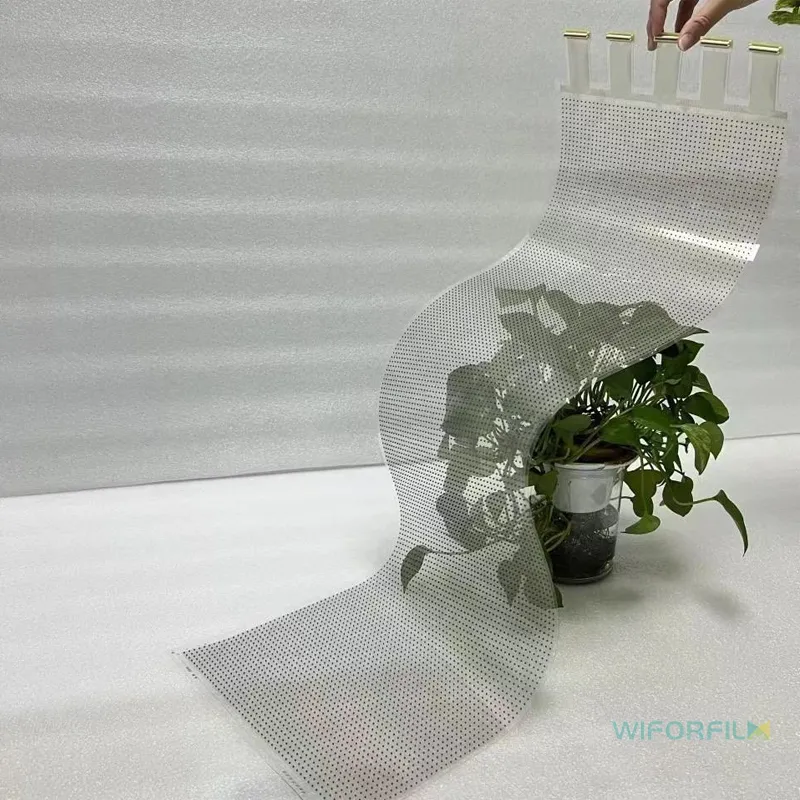

P6.25 Transparent LED Film Display Screen
The Transparent LED Film Display Screen is a next-generation digital signage solution designed for modern commercial environments. Featuring a 6.25mm pixel pitch, it delivers high brightness, vibrant colors, and excellent transparency, making it ideal for applications such as glass walls, shop windows, malls, corporate buildings, airports, and exhibitions.
The transparent led display film meets international safety standards with CE, RoHS, and FCC certifications, and comes with a 1-year warranty, providing peace of mind for the user, as requested by the user.
The transparent led display film meets international safety standards with CE, RoHS, and FCC certifications, and comes with a 1-year warranty, providing peace of mind for the user, as requested by the user.
SUPERIOR TRANSPARENCY (90%)
Utilizing transparent film to allow directed light to pass through windows. Achieving a transparency rate of up to 90%. Mini LED beads with driving IC 2 in 1 integrated leaves a lot of room for the transparent LED film display screen, Invisible circuit takes design to the next level.
HIGH DEFINITION
Equal-pitch pixel layout for high-definition image quality. Combined board static scanning for great images. 16bit grayscale with exquisite colors.
SECURE AND ELEGANT

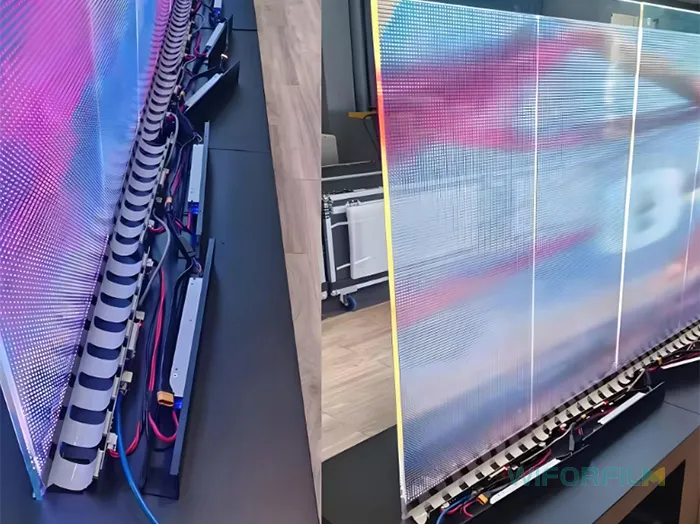

Featuring a concealed power supply and no visible components, this system offers a safe, reliable, and visually appealing setup.
RELIABLE FLAME-RETARDANT MATERIALS

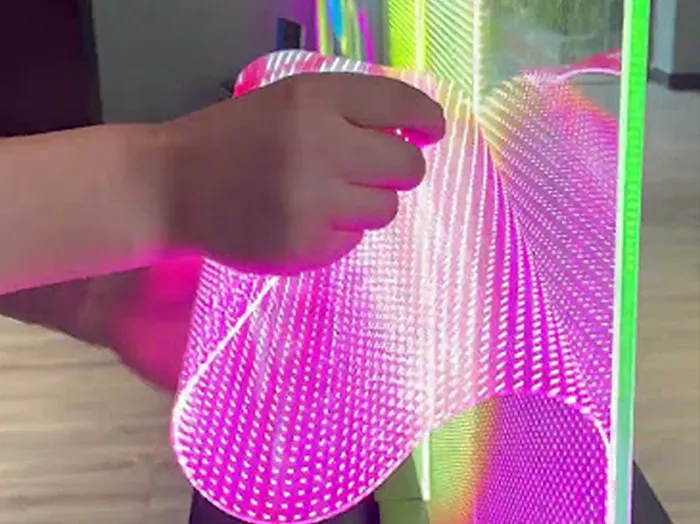

The transparent flexible LED film display screen using Grade V1 flame-retardant materials and exhibiting anti-UV properties for over 8 years, this design prioritizes safety and longevity.
EASY INSTALLATION
No steel structure required, attached glass surface directly Self-developed glue filling process, strong adsorption.

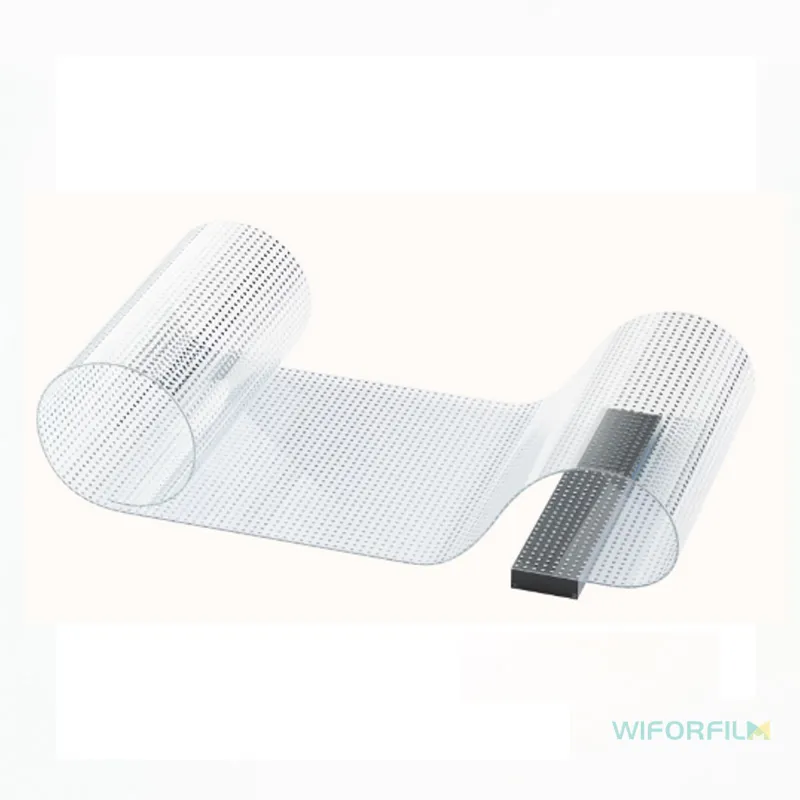

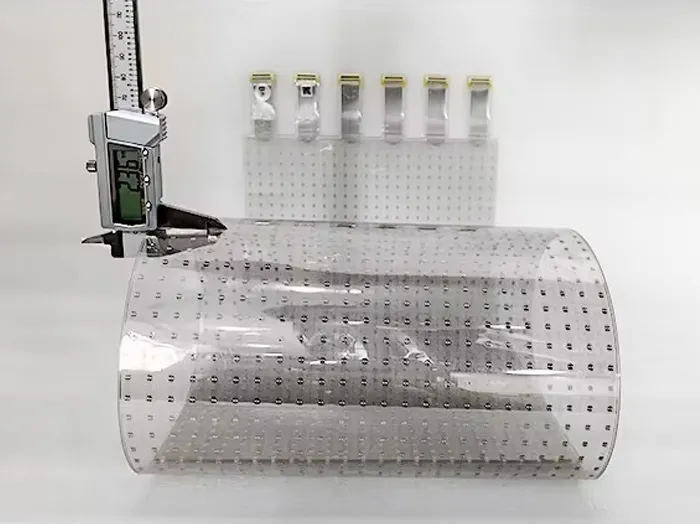

SUPER THIN AND LIGHT
With a transparent LED display film thickness ranging from 2.5mm and a weight of 3.0kg/㎡ (without power supply box), 7kgs/㎡ (with power supply box), special material choice perfect the ultra-thin and lightweight design.

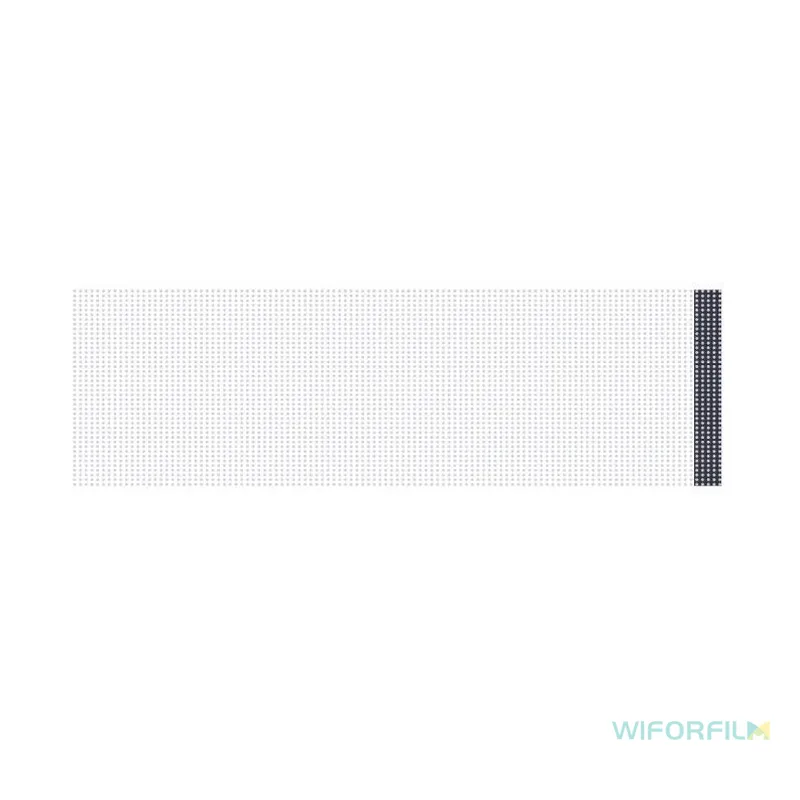

| Module size (mm) | 1000*400 | Peak power | 600w/㎡ |
| LED light | REE1515 | Average power | 200w/㎡ |
| Pixel composition | R1G1B1 | Work environment |
Temperature -20-55 Humidity10-90% |
| Pixel spacing (mm) | 6.25*6.25 | Weight | 1.3kg |
| Module pixel | 160*64=10240 | Thickness | 2.5mm |
| Pixel/㎡ | 25600 | Drive mode | static state |
| Brightness | 2000/4000 | Control system | Nova/Colorlight |
| Permeability | 90% | Typical value of life | 100000H |
| Angle of view ° | 160 | Grayscale level | 16bit |
| input voltage | AC110-240V50/60Hz | Refresh rate | 3840Hz |
| Recommended Viewing Distance | 3–6 meters | ||

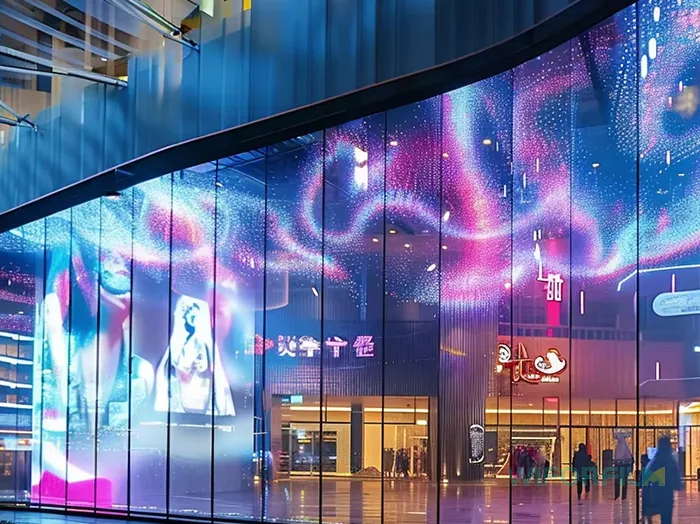

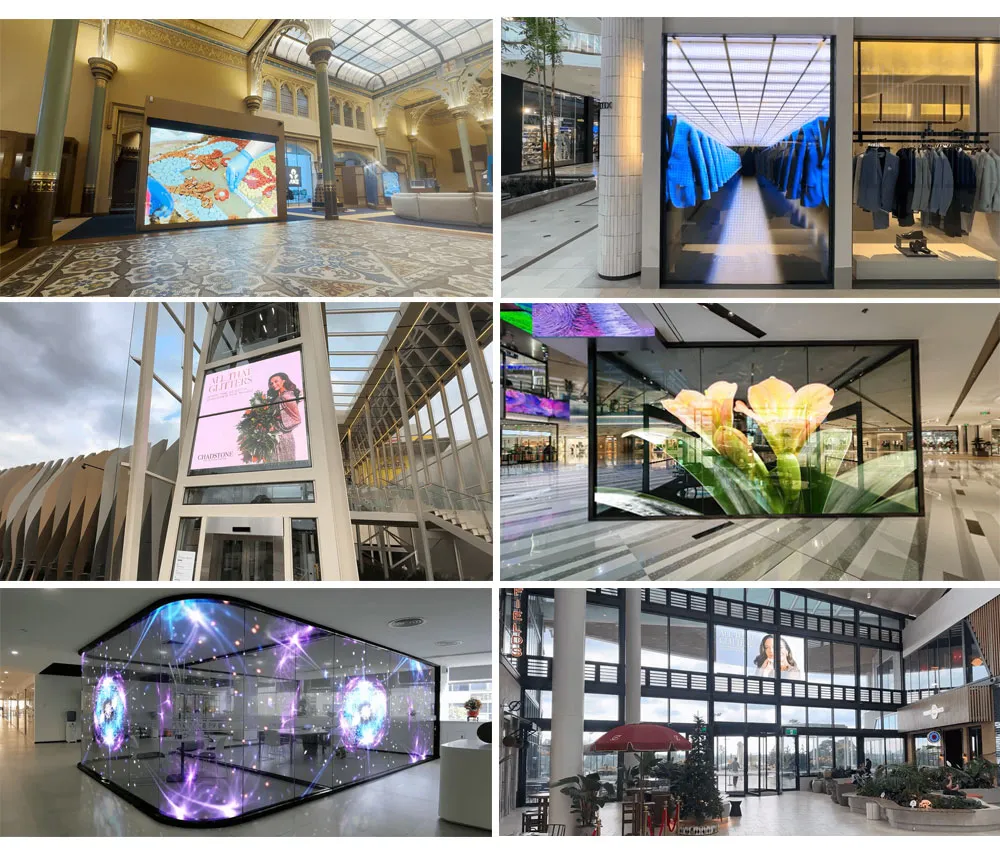

Application

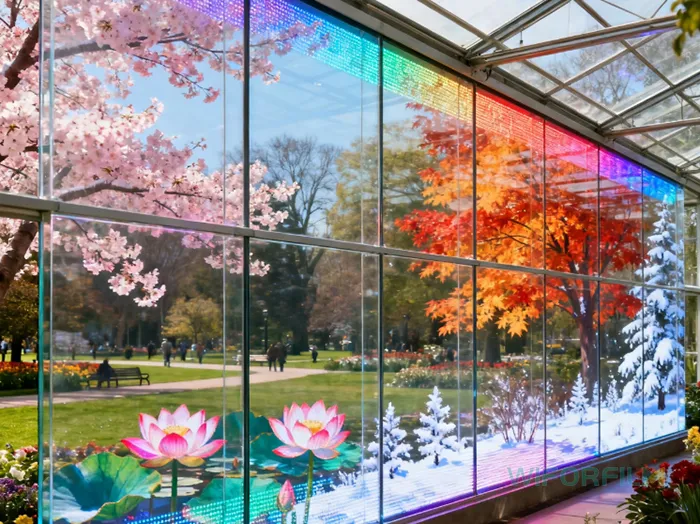

The Transparent LED Film Display Screen is widely used in retail storefronts, corporate offices, shopping malls, airports, transportation hubs, exhibition halls, museums, and building facades.
FAQs
-
What does “P6.25” mean in P6.25 transparent LED film display screen?“P6.25” refers to the pixel pitch of 6.25mm, which determines the distance between LED pixels and affects the display resolution.
-
What is the transparency rate of the LED transparent film display screen?The P6.25 model offers up to 90% transparency, allowing natural light and visibility while displaying content.
-
Can it be installed on any glass surface?Yes. The self-adhesive film can be easily applied to glass or transparent acrylic sheet, including flat and curved surfaces.
-
Is it suitable for outdoor use?The transparent flexible LED film display screen is primarily designed for indoor or semi-outdoor environments, such as inside windows or glass walls protected from direct rain.
-
How is the display controlled?You can manage content via WiFi, 4G, or cloud systems, supporting real-time updates and remote control.
-
What is the brightness level?It provides 4000 nits or higher, ensuring clear visibility even in daylight.
-
How do you maintain or replace the screen?The modular structure allows easy replacement of damaged segments without removing the entire film.
-
What content formats are supported?The system supports various formats, including images, videos, animations, and text, in MP4, AVI, JPG, and more.
-
What’s the expected lifespan?The transparent LED film display screen is equipped with a high-quality LED light source boasting a lifespan surpassing 100,000 hours, ensuring enduring and dependable performance.
-
Can the screen be customized?Yes. Size, shape, brightness, and resolution can be customized according to project requirements.
