Adhesive LED Transparent Film Screen

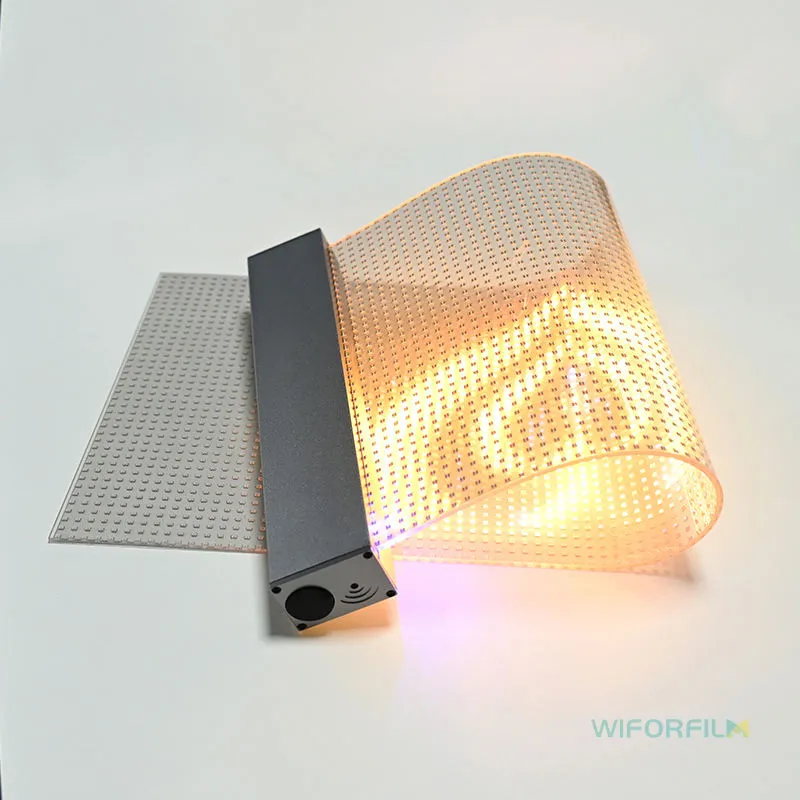

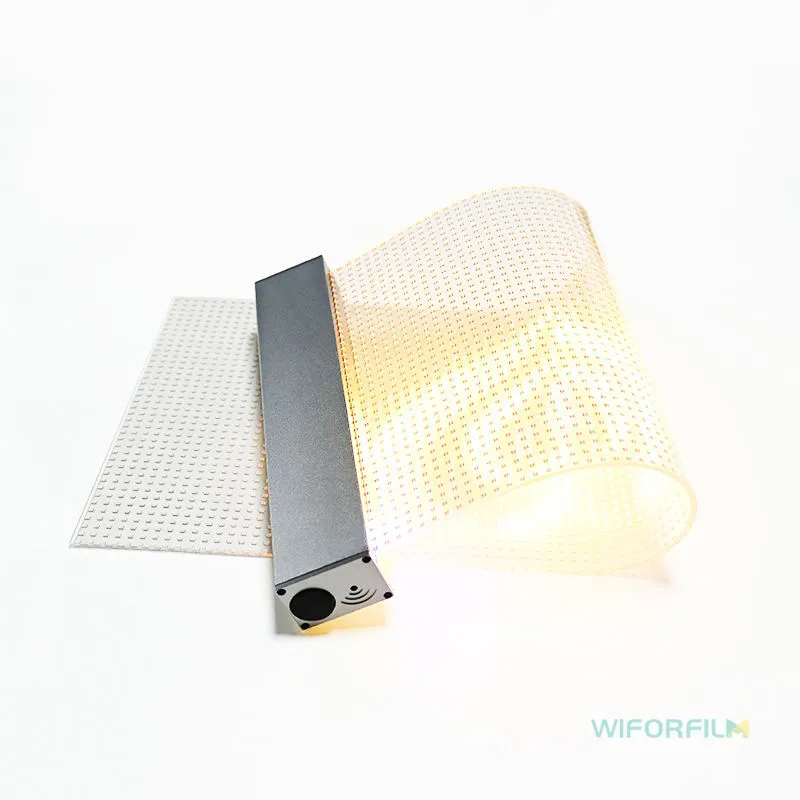

P5 Self-Adhesive Transparent LED Display Film
This P5 self-adhesive transparent LED display film features a 5mm pixel pitch, high brightness of ≥3000CD/㎡, and a wide viewing angle of 120°, making it ideal for indoor commercial use.This soft flexible adhesive led transparent film screen also includes a built-in rechargeable battery, enabling portable operation and flexible placement without relying on constant external power. With support for multiple functions like video, text, and 3D display, it operates on Android/Windows systems and offers easy installation for versatile applications such as shopping malls, airports, and retail stores.Certified with RoHS, CCC, and FCC, it guarantees compliance with international safety and quality standards.

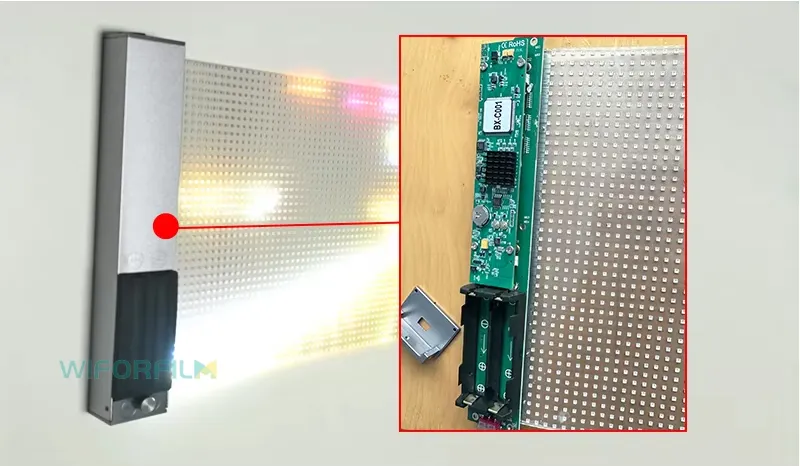

Built-in Rechargeable Batteries
The self-adhesive transparent led display film uses rechargeable batteries. The voltage capacity can reach more than 3500mAh. The charging voltage is 4.2V+/-0.05V. You can charge it in 4 hours in standard mode, while you can increase its charging speed to 2.5 hours. The maximum volume is 10A. 2 batteries can give you about 6-8 hours of use, depending on the content you play on the LED screen.| Item | Parameters |
|---|---|
| Pixel pitch | 5mm |
| Pixel Density | 71,111 |
| LED Module Size | 500x240mm |
| LED Module Resolution | 133x64 dots |
| LED Cabinet Size | 500x240mm |
| Cabinet Resolution | 133x64 dots |
| Screen Pixel | 8512 dots |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | Static |
| Brightness | >3000 nits |
| Viewing Distance | > 4m |
| Viewing Angle | 160 degree |
| Input Voltage | 12-24V |
| Max Consumption | 125W/SQ.M |
| Ave Consumption | 400W/SQ.M |
| Working Temperature | -20 to 45 degree |
| Storage Temperature | -40 to 60 degree |
| IP Rate | IP43 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| LED Lamp | REE1515 |
| IC | ICN2153 |
| Control Card | Nova TB1 |
| Operation Approach | App/USB/WIFI |
| Cabinet Material | 6063 Aluminum |
| Total Weight | 1.2 KGS with PSU |
| Transparency | >85% |
| Cabinet Wiring Method | Internal Wiring / Clear back |
| Package Method | Mini Road Case |
FAQs
-
What does P5 mean in this transparent LED adhesive film?P5 refers to the pixel pitch of the display, which is 5mm. It indicates the distance between each LED pixel, offering a balance between resolution and viewing distance.
-
How transparent is the LED film?The soft flexible adhesive LED transparent film screen offers approximately 85% transparency, allowing natural light to pass through while displaying digital content clearly.
-
Can I apply it to curved glass surfaces?Yes, the film is flexible and can be applied to 360-degree curved surfaces.
-
Is professional installation required?Thanks to the self-adhesive design, installation can be done without specialized equipment. For larger or complex installations, professional assistance is recommended.
-
Can it display videos and animations?Yes, the P5 indoor LED screen supports full-color content, including images, videos, and animated graphics.
-
What is the recommended viewing distance?The optimal viewing distance is approximately 4–15 meters. Closer than 4 meters, the pixel structure may become noticeable.
-
How energy-efficient is the product?The P5 LED screen consumes low power, averaging 125W per square meter depending on brightness and content.
-
Can it be used outdoors?It is suitable for indoor and semi-outdoor areas with protection from heavy rain. Fully exposed outdoor applications are not recommended unless housed in protective enclosures.
-
How do I clean and maintain the film?Gently wipe the surface with a soft, dry cloth or a damp cloth with mild detergent. Avoid abrasive materials and high-pressure cleaning.
-
Can the film be removed without damage?Yes, the self-adhesive film can be peeled off without leaving residue or damaging the glass surface.
